Chopped strand mat

Characteristics

Moisture content ≤0.2%

Fast resin soaking speed, good overmold property, easy to eliminate air bubbles
Even distribution of fibers and adhesives
The product has high dry and wet strength and good transparency

The quality per unit area is uniform, which ensures that the glass fiber content and mechanical properties of the product are stable

Customization

If you have special requirements, HD supports customization of chopped strand mat width, Standard Weight and other parameters.

Get the price

FREE SAMPLE

Ask Price

Place An Order

Transportation

Transaction Complete

Description

"What is Chopped strand mat?”

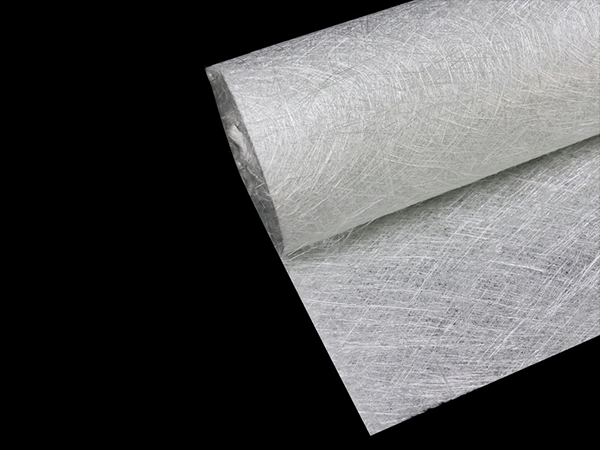

Chopped Strand Mat is made of randomly distributed chopped strands held together by a powder binder.
It is compatible with UP, VE, EP, PF resins.
HD’s Chopped Strand Mat (CSM) is a non-woven mat made from E-glass filaments, consisting of chopped fibres randomly and yet evenly orientated. The 50 mm length chopped fibres are coated with a silane coupling agent and are held together using an emulsion binder.

Specification

Item	Standard Weight(g/m2)	Width(mm)	Loss On Ignition(%)	Moisture(%)	Resins
YN-EMC225	225	1040/1270/2080 ≤3300	2-6	≤0.2	UP VE EP
YN-EMC300	300	1040/1270/2080 ≤3300	2-6	≤0.2	UP VE EP
YN-EMC380	380	1040/1270/2080 ≤3300	2-6	≤0.2	UP VE EP
YN-EMC450	450	1040/1270/2080 ≤3300	2-6	≤0.2	UP VE EP
YN-EMC600	600	1040/1270/2080 ≤3300	2-6	≤0.2	UP VE EP
YN-EMC900	900	1040/1270/2080 ≤3300	2-6	≤0.2	UP VE EP

Still can't find what you're looking for?
Please contact our consultants for more available products.

Request A Quote Today

Application

Fiberglass chopped strand mat is compatible with UP, VE, EP, PF resins. CSM is particularly suitable for hand lay-up process using thermoset resin systems to manufacture wide range of products for wind power generation, ships, petrochemical, building waterproofing and consumer goods.

fiberglass chopped strand mat application2

*Verify Code

Company info

Hebei HaiDing Fiberglass Manufacturing Co.,Ltd, established in 2012, is a professional fiberglass manufacturer in north China, which located at Guangzong County, Xingtai City, Hebei Province.China. As a professional fiberglass enterprise,mainly manufactures and distributes a wide range of E type fiberglass products, such as fiberglass roving, fiberglass chopped strands, fiberglass chopped strand mat, fiberglass woven roving, needled mat, fiberglass fabric and so on. These are widely used in construction industry, automotive industry, airplane and ship building area, chemistry and chemical industry, electrical and electronics, sports and leisure, the emerging field of environmental protection like wind energy, combination of varies of pipes and thermal insulation material. The E-glass products are compatible with the various resins, such as EP/UP/VE/PA and so on.

Packaging & Shipment

One roll in one polybag, then one roll in one carton, then pallet packing, 35kg/roll is standard single roll weight.

Shipping: by sea or by air

Delivery Detail:15-20 days after receive the advance payment
