Some Information About Fiberglass Chopped Strand Mat

Introduction

Fiberglass Chopped Strand Mat (CSM) is a non-woven material made of glass fibers that are chopped and randomly distributed, and then bonded together with a special adhesive. CSM plays an indispensable role in the composite materials industry due to its unique physical and chemical properties. As a lightweight, high-strength, high-modulus reinforced material, CSM is not only easy to process and form, but also can significantly improve the overall performance of composite materials. Therefore, it is widely used in construction, transportation, shipbuilding, aerospace and other fields.

The reason why CSM is valued in the composite materials industry is that on the one hand it can effectively improve the mechanical properties of composite materials, such as tensile strength, bending strength, etc.; on the other hand, CSM also has good chemical corrosion resistance, Temperature and electrical insulation properties. These properties make CSM an ideal choice for manufacturing high-performance composite materials. In addition, due to its relatively low cost and ease of mass production, CSM exhibits extremely high cost performance in practical applications, thus promoting its widespread application and development worldwide.

The following content will delve into the definition, composition, performance, application and comparison of CSM with other materials, aiming to provide readers with a comprehensive perspective on CSM and reveal its huge potential in the field of future composite materials.

What is fiberglass chopped strand mat

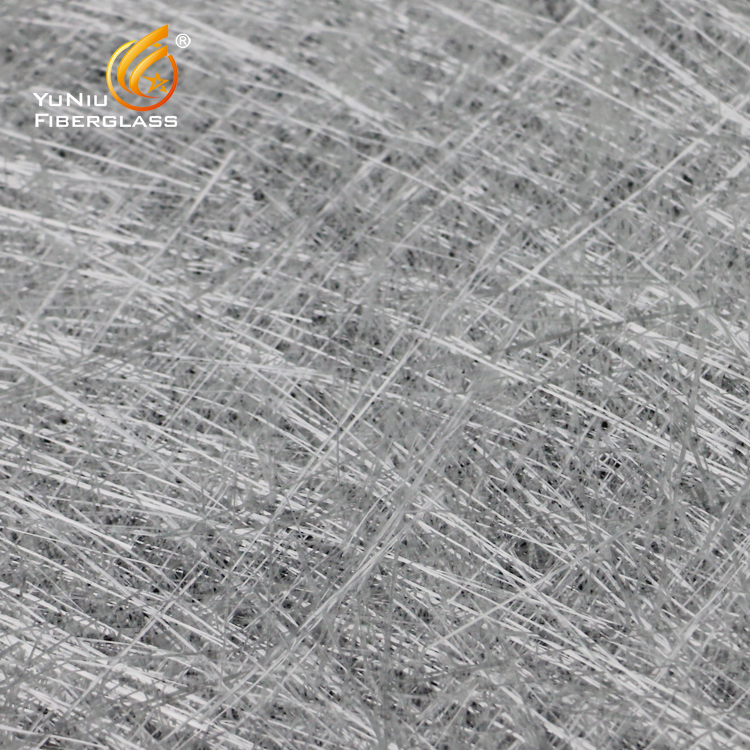

Fiberglass Chopped Strand Mat (CSM) is a nonwoven material made of continuous glass fibers that are chopped and randomly distributed on a plane and then fixed together by a special adhesive. This material is usually made of alkali-free glass fiber (E-glass) and is widely used in the manufacture of composite materials due to its excellent mechanical properties, chemical resistance and heat resistance.

The main features of CSM include but are not limited to the following aspects: Lightweight: Due to the low density of the glass fiber itself, CSM is relatively light in weight, which makes it an ideal choice for applications that need to reduce the weight of the structure. High strength: Although the individual fibers are thin, the overall strength of CSM is very high when they are randomly arranged and bonded together in large quantities. The tensile strength of CSM is usually between a few hundred megapascals and several thousand megapascals, depending on the specific fiber type and processing method. High modulus: CSM has a high elastic modulus, which means that it can withstand large external forces without significant deformation. Good chemical resistance: Glass fiber itself has good resistance to most chemicals, which allows CSM to be used in acidic or alkaline environments. Temperature resistance: CSM can maintain its performance over a wide temperature range and is suitable for applications that require working under high or low temperature conditions. Easy to form: CSM can be combined with resin to form composite materials through a simple pressing or injection process. This easy formability makes CSM very suitable for mass production and the manufacture of complex shapes. Economical: Compared with other reinforcing materials, CSM has a lower cost, which makes it highly cost-effective in many applications. Wide applicability: CSM can adjust its thickness and fiber content according to different application requirements and is suitable for the manufacture of a variety of composite products.

In summary, CSM is not only favored for its unique physical and chemical properties, but also widely used in various fields of composite materials because of its advantages in processing and fiberglass chopped mat strength. In the following sections, we will continue to explore the composition, application areas, performance parameters, etc. of CSM.

Composition of glass fiber chopped strand mat

The main fiberglass chopped mat material for making chopped strand mat (CSM) is glass fiber. These fibers are usually made of E-glass (alkali-free glass) because of its excellent mechanical properties, good chemical resistance and stable electrical properties. E-glass is a glass formula composed of silicon dioxide (SiO₂), calcium oxide (CaO), aluminum oxide (Al₂O₃) and other trace elements. After these raw materials are melted at high temperatures, they are drawn into long and thin continuous fibers through special nozzles. These fibers are surface treated during the drawing process to increase their adhesion to the resin, thereby improving the performance of the final product.

The manufacturing process of CSM mainly includes the following steps Fiber drawing: First, the glass raw materials are heated to a molten state and then drawn into continuous glass fibers through a nozzle. This process usually coats the fiber surface with a special treatment agent to improve the compatibility of the fiber with the resin.

Fiber cutting: Subsequently, these continuous fibers are cut into short fibers of a certain length. The cutting length depends on the application requirements of the final product, usually between a few millimeters and tens of millimeters.

Laying and bonding: The chopped fibers are randomly laid on a plane to form a layer of non-woven felt-like material. In order to ensure the fixation between the fibers and the integrity of the felt, an adhesive (usually water-soluble) is added to the fiber layer. The adhesive will harden during the subsequent drying process, bonding the fibers together. Drying and winding: After laying, the CSM needs to go through a drying process to remove excess moisture and solidify the adhesive. Finally, the CSM will be rolled up for easy storage and transportation. Through the above steps, the final result is a non-woven material with a certain thickness, in which the chopped fibers are randomly distributed and bonded together. Due to the random distribution of its fibers, this material has relatively uniform mechanical properties in all directions and is suitable for use in composite products that need to be reinforced.

Application fields of glass fiber chopped strand mat

In the construction industry, glass fiber chopped strand mat (CSM) is favored for its light weight, high strength, corrosion resistance and other characteristics. The following are several typical application scenarios: Wall reinforcement: CSM can be used to reinforce the walls of old buildings to improve their earthquake resistance and structural stability. Roof system: In the roof system, CSM is combined with resin to serve as part of the waterproof and thermal insulation layer while enhancing the overall strength of the roof. Floors and ceilings: CSM can be used to manufacture lightweight, high-strength floor and ceiling materials, especially when the weight of the structure needs to be reduced. Decorative materials: Since CSM is easy to process and shape, it is also used to make various decorative panels and components. The transportation industry is an important application area for CSM, especially in the pursuit of lightweight design trends. The following are several major applications: Automotive parts: CSM is used to manufacture automotive interior parts, body panels, etc. to reduce the overall weight of the vehicle and improve fuel efficiency. Shipbuilding: In shipbuilding, CSM can be used in the manufacture of hulls, decks and other structural components to improve corrosion resistance and durability. Aircraft internal structure: Although the aviation field has more stringent requirements on materials, CSM has also been used in some non-load-bearing parts to reduce weight.

In addition to the above fields, CSM also plays an important role in many other industrial applications: Pipes and containers: CSM combined with resin to form composite materials are often used to manufacture corrosion-resistant pipes and containers. Sports equipment: In sporting goods, such as golf clubs, skis, etc., CSM is used to enhance the durability and strength of the product. Electronic product housing: The housing of electronic equipment also requires lightweight and high-strength materials, and CSM can meet these requirements. Wind energy industry: In the manufacture of wind turbine blades, CSM is used to enhance the strength and stiffness of composite materials to adapt to harsh working environments.

Performance parameters of glass fiber chopped strand mat

CSM is known for its excellent mechanical properties, which mainly include tensile strength, compressive strength and flexural strength. Specifically: Tensile strength: The tensile strength of CSM depends on the type and quality of the fiber, and is generally between a few hundred and a few thousand megapascals. For example, the tensile strength of standard E-glass fiber can reach about 3.4 GPa. Compressive strength: Although fiberglass chopped mat waterproofing is mainly used for tensile applications, it also has a certain compressive capacity and can withstand certain compressive loads.

Flexural strength: The application of fiberglass chopped mat reinforcement in composites often involves bending loads, and its flexural strength is also excellent. Chemical resistance of CSM is another important performance indicator. Since its main component is glass fiber, it has very good chemical corrosion resistance and can resist the erosion of most acids, alkalis and salt solutions. The following are several main chemical resistance characteristics: Acid resistance: CSM can resist the influence of acidic environment well, especially for weak acids. Alkali resistance: CSM also performs well under alkaline conditions and can maintain its original performance for a long time. Solvent resistance: CSM has good tolerance to most organic solvents and is not easily dissolved or degraded. The thermal stability of CSM is a measure of its ability to maintain its original performance in a high temperature environment. Specifically, it is manifested in: Operating temperature range: CSM can maintain its performance over a wide temperature range, and can usually be used normally in a temperature range of -70°C to +260°C.

Long-term heat resistance: CSM can maintain good dimensional stability and mechanical properties when continuously exposed to high temperatures. Thermal expansion coefficient: CSM has a relatively low thermal expansion coefficient, which means that its size changes less when the temperature changes, which is conducive to maintaining the integrity of the structure.

Comparison of glass fiber chopped strand mat with other materials

Compared with traditional building materials such as metal and wood, CSM shows unique advantages in many aspects: Lightweight: The density of CSM is much lower than that of steel and aluminum alloy, which makes it an ideal choice for lightweight design. High strength: Despite its low density, CSM has very high tensile strength, usually reaching hundreds to thousands of megapascals. Corrosion resistance: Compared with metal materials, CSM is not affected by corrosion and can maintain its performance even in harsh environmental conditions.

Cost-effectiveness: Compared with some high-performance metal alloys, CSM has lower cost and higher cost-effectiveness. Easy processing: CSM is easy to cut and shape, and is suitable for a variety of processing methods such as molding and injection. Comparison with similar products Compared with other types of glass fiber products, CSM has the following characteristics: Easy to use: The random distribution of CSM makes it very easy to combine with resin, suitable for rapid prototyping and large-scale production. Uniform distribution: Because the fibers are randomly distributed, CSM has relatively uniform mechanical properties in all directions. Versatility: The versatility of CSM makes it suitable for a variety of composite applications, from construction to transportation and other industries. Cost advantage: Compared with other oriented fiber products, CSM has a lower manufacturing cost, which makes it more competitive in price-sensitive applications. By comparing with traditional materials and similar products, it can be seen that CSM not only has obvious advantages in performance, but also excels in cost and processing convenience. These characteristics make CSM one of the indispensable and important materials in the field of composite materials.

Development Trends and Future Prospects

With the development of new material technology, the performance of CSM will be further improved

With the continuous advancement of new material technology, the performance of glass fiber chopped strand mat (CSM) is also being continuously optimized. Researchers are working on developing higher strength and higher modulus glass fibers to further improve the mechanical properties of CSM. In addition, the development of new surface treatment agents will also improve the interfacial bonding between fiber and resin, thereby enhancing the overall performance of composite materials. These technological advances will enable fiberglass chopped mat strength to meet more demanding application requirements.

The focus on sustainability and environmental friendliness will promote the development of more green production processes. With the increasing global attention to sustainable development and environmental protection, the production process of CSM will also move towards a more environmentally friendly direction. For example, measures such as using less energy and resources, reducing waste emissions, and developing recyclable or biodegradable adhesives will become the focus of research and development. The research and development of these green production processes can not only reduce the impact on the environment, but also improve the market competitiveness of products.

The growth of market demand will drive the expansion of the scale of the CSM industry and technological progress. With the acceleration of global industrialization and urbanization, the demand for lightweight and high-strength materials is also increasing. Especially in the fields of construction, transportation and aerospace, the demand for high-performance composite materials has shown a clear growth trend. This will directly promote the expansion of the fiberglass chopped mat price and promote the further development of related technologies. Manufacturers will continue to seek new technologies and methods to improve production efficiency, reduce costs and develop new products that better meet market demand.

In short, with the advancement of science and technology and the changing needs of social development, glass fiber chopped strand mat (CSM) will continue to play an important role in the field of composite materials.Through continuous technological innovation and the pursuit of sustainability, CSM will not only better meet the needs of existing applications, but also open up more new application areas and make greater contributions to future scientific and technological progress.
