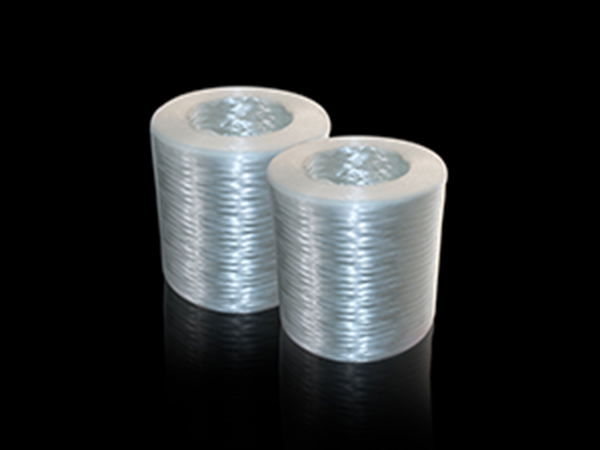

Fiberglass direct roving

Characteristics

Even tension,excellent chopped performance and dispersion,good flow ability under mold press.
Fast and complete wet-out.
Low static,no fuzz.
High mechanical strength.

Customization

If you have special requirements, HD supports customization of roving filament diameter, tex value and other parameters.

Get the price

FREE SAMPLE

Ask Price

Place An Order

Transportation

Transaction Complete

Description

"What is fiberglass direct roving?”

Direct roving manufactured by HD is continuous single twistless roving used for hand lay-up, filament winding,pultrusion, and weaving processes. Such glass fiber roving is applicable to unsaturated polyester resin (UP), vinyl ester resin (VE), phenolic resin。

Specification

Item	TEX	Diameter (um)	LOl (%)	Mol (%)	Compatible Resin
YN-DR012	2000-4800	22-24	0.40-0.70	≤0.10	UP
YN-DR013	300-1200	13-17	0.40-0.70	≤0.10	UP VE EP
YN-DR014	300-4800	13-24	0.40-0.70	≤0.10	UP VE EP
YN-DR015	300-2400	13-24	0.35-0.55	≤0.10	UP VE EP PF

Still can't find what you're looking for?
Please contact our consultants for more available products.

Request A Quote Today

Application

Fiberglass direct roving finished products could meet skyscraping bursting strength and endure tiredness capability request. Widely used for winding ,pultrusion and weaving process.

Winding process:

In the filament winding process,continuous strands of resin-impregnated glass fiber are wound are wound under tension onto a mandrel in precise geometric patterns to build up the part which is then cured to form the finished parts.

Pultrusion process:

Pultrusion is a process where raw materials (fiberglass direct roving and resins) are drawn into a profile die by a mechanical pulling force. These glass fibers are injected with resins while under tension where they are combined and cured.

The weaving process, interlaces the warp and filling yarns according to a weave pattern to form a fabric structure. Almost any weave pattern can be woven with fiberglass roving/yarn. The basic patterns

Company info

Hebei HaiDing Fiberglass Manufacturing Co.,Ltd, established in 2012, is a professional fiberglass manufacturer in north China, which located at Guangzong County, Xingtai City, Hebei Province.China. As a professional fiberglass enterprise,mainly manufactures and distributes a wide range of E type fiberglass products, such as fiberglass roving, fiberglass chopped strands, fiberglass chopped strand mat, fiberglass woven roving, needled mat, fiberglass fabric and so on. These are widely used in construction industry, automotive industry, airplane and ship building area, chemistry and chemical industry, electrical and electronics, sports and leisure, the emerging field of environmental protection like wind energy, combination of varies of pipes and thermal insulation material. The E-glass products are compatible with the various resins, such as EP/UP/VE/PA and so on.

Packaging & Shipment

Fiberglass roving each roll is approximately 18KG, 48/64 rolls a tray, 48 rolls are 3 floors and 64 rolls are 4 floors. The 20-foot container holds about 22 tons.

We are able to provide

A variety of shipping methods ensure that your goods arrive safely and quickly.

Q1:Are you a factory? Where are you located?
A: we are a manufacturer. We are located in Xingtai city Hebei province ,China.

Q2:What's the MOQ?
A: Usually 1 Ton

Q3:Package & Shipping.
A: Normal package:carton(Included in the unite price)
Special Package: need to charge according the actual situation.
Normal shipping :your nominated Freight forwarding.

Q4:When can I offer?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price please call us or tell us in your email , so that we can reply you priority.

Q5:How do you charge the sample fees?
A: If you need a samples from our stock, we can provide to you for free, but you need to pay the freight charge.If you need a special size, We will charge the sample making fee which is refundable when you place an order.

Q6:What's your delivery time for production?
A:If we have stock , can delivery in 7 days ; if without the stock, need 7~15 days !
