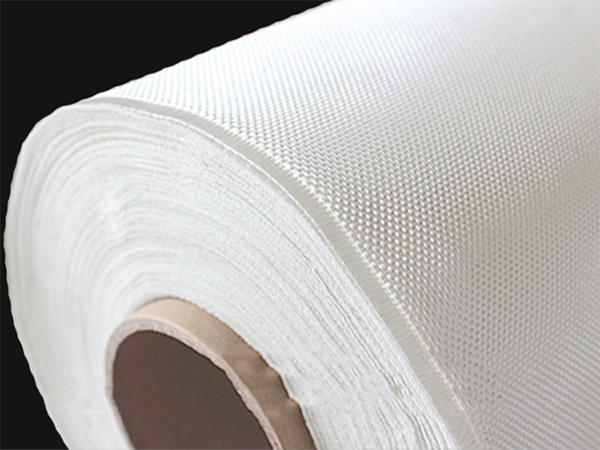

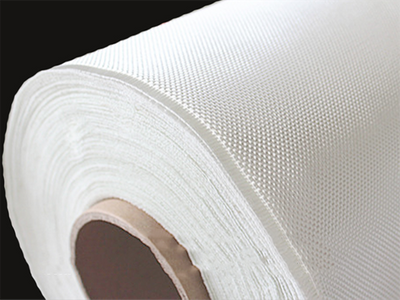

fiberglass plain cloth-HD Fiberglass-1
fiberglass 7628 cloth-HD Fiberglass-2
fiberglass 7628 cloth-HD Fiberglass-1
Plain cloth
Characteristics
  • For low temperature -200 °C, high temperature between 600 °C, with weather resistance.
  • Non-adhesive, not easy to adhere to any material.
  • Chemical resistance, resistance to strong acid, alkali, aqua regia and various organic solvents corrosion.
  • Low friction coefficient, is the best choice for oil-free self-lubricating.
Customization
If you have special requirements, HD supports customization of woven roving width, wrap yarn tex, weft yarn tex and other parameters.
 FREE SAMPLE
Ask Price
Place An Order
Transportation
Transaction Complete

Description

"What is Plain cloth?”
Fiberglass plain cloth weave refers to a woven fabric in which warp and weft yarns are interlaced at 90 angles up and down, treated with silane coupling agent, and woven into plain weave.
In the glass fiber industry, spun yarn (monofilament diameter below 9 microns) is generally used to weave.
"What is 7628 cloth?”
Fiberglass 7618 cloth is a general name for electronic grade fiberglass cloth which is woven by E-glass fiber in plain weave. It is widely used in the electronics industry. It is the high-end products in the fiber glass cloth.
7628 Fiberglass cloth offers great combination of high strength and high temperature resistance. 7628 fiberglass electronic cloth provides powerful heat protection while still maintaining its excellent properties.

Specification

  Item Weave Structure   Density counts/cm Weight (±5%) Thickness(±10% Color
Warp Weft g/m2 Oz/yd2 mm inch
  YN-7628 Plain  18  12 300 60 0.20 0.008 White
  YN-280 Plain 12 9 450 60 0.30 0.012 White
  YN-310 Plain 12 10 300 60 0.32 0.013 White
  YN-3732 Twill 18 10 450 60 0.43 0.017 White/yellow
  YN-600 Plain pane 15 14 300 60 0.60 0.023 White/yellow
  YN-3784 Satin 18 12 450 60 0.90 0.035 White/yellow
 YN-3788 Satin 18 12 400 60 1.65 0.067 White/yellow
Still can't find what you're looking for?
Please contact our consultants for more available products.

Application

Fiberglass plain cloth offers outstanding application to the electrical industry. Its high tensile strength, dimensional stability, fire resistance and electrical properties provide the basis for using as the prime reinforcement in high pressure laminates for printed circuit boards; It is also an excellent choice as a boat repair material.
Contact Us
Company info

Hebei HaiDing Fiberglass Manufacturing Co.,Ltd, established in 2012, is a professional fiberglass manufacturer in north China, which located at Guangzong County, Xingtai City, Hebei Province.China. As a professional fiberglass enterprise,mainly manufactures and distributes a wide range of E type fiberglass products, such as fiberglass roving, fiberglass chopped strands, fiberglass chopped strand mat, fiberglass woven roving, needled mat, fiberglass fabric and so on. These are widely used in construction industry, automotive industry, airplane and ship building area, chemistry and chemical industry, electrical and electronics, sports and leisure, the emerging field of environmental protection like wind energy, combination of varies of pipes and thermal insulation material. The E-glass products are compatible with the various resins, such as EP/UP/VE/PA and so on.

Packaging & Shipment
Plain Weave Cloth could be produced into different widths,each roll is wound on a sultable cardboard tubes with inside diameter of 100mm,then put into a polythylene bag,fastened the bag entrance.Finally, it can be transported using a carton or packaged for transport on a pallet.
Delivery Detail: 15 days after receiving the deposit.


Shipping: by sea or by air

Delivery Detail:15-20 days after receive the advance payment
We are able to provide
A variety of shipping methods ensure that your goods arrive safely and quickly.
Q1:Are you a factory? Where are you located?
A: we are a manufacturer. We are located in Xingtai city Hebei province ,China.
Q2:What's the MOQ?
A: Usually 1 Ton
Q3:Package & Shipping.
A: Normal package:carton(Included in the unite price)
Special Package: need to charge according the actual situation.
Normal shipping :your nominated Freight forwarding.
Q4:When can I offer?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price please call us or tell us in your email , so that we can reply you priority.
Q5:How do you charge the sample fees?
A: If you need a samples from our stock, we can provide to you for free, but you need to pay the freight charge.If you need a special size, We will charge the sample making fee which is refundable when you place an order.
Q6:What's your delivery time for production?
A:If we have stock , can delivery in 7 days ; if without the stock, need 7~15 days !
