Woven roving

Characteristics

Well-distributed, even tensile strength, good vertical performance

Fasting impregnation, good moulding property, easily removing air bubble

High mechanical strength, less strength loss in wet condition

Customization

If you have special requirements, HD supports customization of woven roving width, wrap yarn tex, weft yarn tex and other parameters.

Get the price

FREE SAMPLE

Ask Price

Place An Order

Transportation

Transaction Complete

Description

"What is Woven roving?”

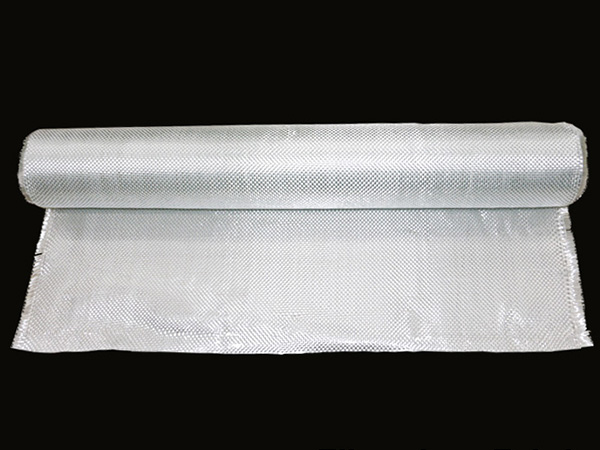

Woven roving is made on looms by weaving drect roving into fabrics. It graves bidirectional, (0°/90°reinforcement).

Typically, the glass fiber content is a suitable sizing for multiple resin systems such as unsaturated polyester and epoxy resins; however, a special customized sizing for thermoplastic or phenolic resins is available upon request.

Specification

Item	TEX		Count Of Cloth(root/cm)		Unit Area Mass(g/m)	Breaking Strength(N)		Width(mm)
Item	Wrap Yarn	Weft Yarn	Wrap Yarn	Weft Yarn	Unit Area Mass(g/m)	Wrap Yarn	Weft Yarn	Width(mm)
YN-EWR200	180	180	6.0	5.0	200±15	1300	1100	30-3000
YN-EWR300	300	300	5.0	4.0	300±15	1800	1700	30-3000
YN-EWR400	576	576	3.6	3.2	400±20	2500	2200	30-3000
YN-EWR500	900	900	2.9	2.7	500±25	3000	2750	30-3000
YN-EWR600	1200	1200	2.6	2.5	600±30	4000	3850	30-3000
YN-EWR800	2400	2400	1.8	1.8	800±40	4600	4400	30-3000
YN-CWR200	180	180	6.0	6.0	200±15	1150	1000	30-3000
YN-CWR400	480	500	4.0	3.8	385±30	2000	2200	30-3000
YN-CWR600	1300	960	2.6	2.6	600±45	3500	3000	30-3000
YN-CWR800	2200	1760	2.0	2.0	810±40	4000	3600	30-3000

Still can't find what you're looking for?
Please contact our consultants for more available products.

Request A Quote Today

Application

Fiberglass woven roving is compatible with Polyester, Vinylester and Epoxy resin and widely used in hand machine production, such as boats, vessels, plane and automotive parts, furniture, sports and other areas.

*Verify Code

Company info

Hebei HaiDing Fiberglass Manufacturing Co.,Ltd, established in 2012, is a professional fiberglass manufacturer in north China, which located at Guangzong County, Xingtai City, Hebei Province.China. As a professional fiberglass enterprise,mainly manufactures and distributes a wide range of E type fiberglass products, such as fiberglass roving, fiberglass chopped strands, fiberglass chopped strand mat, fiberglass woven roving, needled mat, fiberglass fabric and so on. These are widely used in construction industry, automotive industry, airplane and ship building area, chemistry and chemical industry, electrical and electronics, sports and leisure, the emerging field of environmental protection like wind energy, combination of varies of pipes and thermal insulation material. The E-glass products are compatible with the various resins, such as EP/UP/VE/PA and so on.

Packaging & Shipment

Woven roving cloth could be produced into different widths, each roll is wound on a suitable cardboard tubes with inside diameter of 100mm,then put into a polythylene bag,fastened the bag entrance and packed into a suitable cardboard box. Upon to customer's request, this product could be shipped either with carton packaging only or with packaging, In pallet packaging, the products could be horizontally put on the pallets and fastened with packing straps and shrink film.
Delivery Detail: 15 days after receiving the deposit.

Shipping: by sea or by air

Delivery Detail:15-20 days after receive the advance payment

We are able to provide

A variety of shipping methods ensure that your goods arrive safely and quickly.

Q1:Are you a factory? Where are you located?
A: we are a manufacturer. We are located in Xingtai city Hebei province ,China.

Q2:What's the MOQ?
A: Usually 1 Ton

Q3:Package & Shipping.
A: Normal package:carton(Included in the unite price)
Special Package: need to charge according the actual situation.
Normal shipping :your nominated Freight forwarding.

Q4:When can I offer?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price please call us or tell us in your email , so that we can reply you priority.

Q5:How do you charge the sample fees?
A: If you need a samples from our stock, we can provide to you for free, but you need to pay the freight charge.If you need a special size, We will charge the sample making fee which is refundable when you place an order.

Q6:What's your delivery time for production?
A:If we have stock , can delivery in 7 days ; if without the stock, need 7~15 days !
